Axual Python Client
-------------------
[![License](https://img.shields.io/badge/License-Apache%202.0-blue.svg)](https://opensource.org/licenses/Apache-2.0)
[![Pipeline Status](https://gitlab.com/axual/public/axual-client-python/badges/master/pipeline.svg)](https://gitlab.com/axual/public/axual-client-python/commits/master)
[![Quality Gate Status](https://sonarcloud.io/api/project_badges/measure?project=axual-public-axual-client-python&metric=alert_status)](https://sonarcloud.io/summary/new_code?id=axual-public-axual-client-python)
[![Maintainability Rating](https://sonarcloud.io/api/project_badges/measure?project=axual-public-axual-client-python&metric=sqale_rating)](https://sonarcloud.io/summary/new_code?id=axual-public-axual-client-python)
Python client library that enables interaction with the Axual platform.

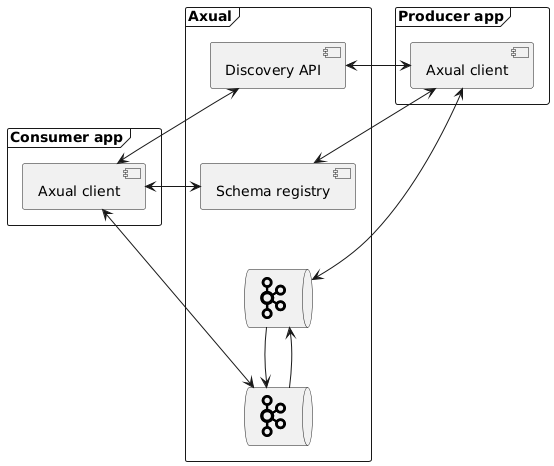

![Python Client Overview](http://www.plantuml.com/plantuml/png/VP0zQyCm48Rdw5TSJI6J6-hP14AxT0jqB1s4T8v5zA7ALca8_Uzrpht4zf39kkTz_HpSW_7APerGAnkoDhupXxRV76Lpb5iXrc8DAaI36eotnYEqc12Q51pqBKAqqlVPsGqqmMfCJyCVeadI8HJx57HMc436M83i838uYvKABWQFleTYzvEb1MNDC5rxuoX-MVOIV9VTHAO8t9TnxofZ6xKebjG_YvdarNGgV6CwmMx_HZLz8RFEkshHIKXuC5sVJjJYGQo-CcQ4eduS3qafFP_lP9KGAre4vKThj4R_MMudKdxDOhQENoWPLV-eWlBMkfpWTbseXuGMBY5lMd3MS4niSc1oBI4z5uhg3m00)
## Prerequisites
Python 3 is required, Python 3.6 or greater is recommended.
## Installation
```bash
pip install axual-client-python
```
## Testing
Tests are located in the `tests/` directory.
To run all of them:
```bash
python -m unittest discover tests
```
## Usage
### Producer
```python
import json
from axualclient.producer import Producer
conf = {
# Axual configuration
'application_id': application_id,
'endpoint': endpoint,
'tenant': tenant,
'environment': environment,
# SSL configuration
'ssl.certificate.location': producer_app_cert,
'ssl.key.location': producer_app_key,
'ssl.ca.location': root_cert,
}
producer = Producer(conf)
producer.produce(value=json.dumps(dict(a=1, b='banana')))
producer.flush() # Flushes producer before ending (triggering callbacks for delivery reports)
```
See [SSL Configuration](#ssl-configuration) for more info on the certificates required.
### Consumer
```python
from axualclient.consumer import Consumer
conf = {
# Axual configuration
'application_id': application_id,
'endpoint': endpoint,
'tenant': tenant,
'environment': environment,
# SSL configuration
'ssl.certificate.location': producer_app_cert,
'ssl.key.location': producer_app_key,
'ssl.ca.location': root_cert,
# Consumer configuration
'auto.offset.reset': 'earliest',
'on_commit': on_commit_callback,
}
consumer = Consumer(conf)
try:
# Subscribe to topic(s) as they appear on Self Service
consumer.subscribe(['your-topic'])
while True:
msg = consumer.poll(1.0)
# msg is None if no new message
if msg is None:
continue
if msg.error():
# Error handling
raise KafkaException(msg.error())
else:
# Do some processing on the message
print(
f'Received message on topic {msg.topic()} partition {msg.partition()} '
f'offset {msg.offset()} key {msg.key()} value {msg.value()}'
)
# Commit message offset to the topic
consumer.commit()
finally:
if consumer is not None:
# Cleanly unregister from cluster by closing consumer
consumer.commit()
consumer.close()
```
### Producer (AVRO)
Producing AVRO messages works if you have the AVRO schema available that was uploaded to self-service.
Those schemas need to be provided to the serializer via the `schema_str` as Avro [Schema Declaration](https://avro.apache.org/docs/current/spec.html#schemas>).
```python
from axualclient.avro import AvroSerializer
from axualclient.serializing_producer import SerializingProducer
key_serializer = AvroSerializer(schema_str=Application.SCHEMA, to_dict=application_to_dict)
value_serializer = AvroSerializer(schema_str=ApplicationLogEvent.SCHEMA, to_dict=application_log_event_to_dict)
conf = {
# Axual configuration
'application_id': application_id,
'endpoint': endpoint,
'tenant': tenant,
'environment': environment,
# SSL configuration
'ssl.certificate.location': producer_app_cert,
'ssl.key.location': producer_app_key,
'ssl.ca.location': root_cert,
# Producer configuration
'key.serializer': key_serializer,
'value.serializer': value_serializer,
'acks': 'all',
}
producer = SerializingProducer(conf)
producer.produce(topic=topic, value=value, key=key)
producer.flush() # Flushes producer before ending (triggering callbacks for delivery reports)
```
### Consumer (AVRO)
Consumer `AvroDeserializers` need to be instantiated and passed as configuration to the Axual `DeserializingConsumer` like so:
```python
from axualclient.avro import AvroDeserializer
from axualclient.deserializing_consumer import DeserializingConsumer
# Initialize Deserializers:
key_deserializer = AvroDeserializer(
# Optional parameters
schema_str=Application.SCHEMA,
from_dict=dict_to_application
)
value_deserializer = AvroDeserializer(
# Optional parameters
schema_str=ApplicationLogEvent.SCHEMA,
from_dict=dict_to_application_log_event,
)
configuration = {
# Axual configuration
'application_id': application_id,
'endpoint': endpoint,
'tenant': tenant,
'environment': environment,
# SSL configuration
'ssl.certificate.location': producer_app_cert,
'ssl.key.location': producer_app_key,
'ssl.ca.location': root_cert,
# Consumer configuration
'key.deserializer': key_deserializer,
'value.deserializer': value_deserializer,
'auto.offset.reset': 'earliest',
'on_commit': on_commit_callback,
'error_cb': on_error_callback,
'logger': logger
}
consumer = DeserializingConsumer(configuration)
try:
consumer.subscribe([topic])
while True:
msg = consumer.poll()
if msg is None:
continue
if msg.error():
print(f'Error returned by poll: {msg.error()}')
else:
print(
f'Received message on topic {msg.topic()} partition {msg.partition()} '
f'offset {msg.offset()} key: {str(msg.key())} value: {str(msg.value())}'
)
consumer.commit()
except KeyboardInterrupt:
print('Caught KeyboardInterrupt, stopping.')
finally:
if consumer is not None:
print('Committing final offsets and leaving group.')
consumer.commit()
consumer.close()
```
## SSL Configuration
The client configuration requires a correct SSL configuration in order to communicate securely with brokers, the discovery API, and the schema registry.
Each application (as defined in self-service) requires an application certificate (`ssl.certificate.location`) and corresponding private key (`ssl.key.location`).
The application certificate must match the one uploaded in self-service for that application.
The file with root certificates needs to be created properly: the brokers might be using a root certificate authority different
from the authority that signed the certificates for the discovery API and schema registry.
The base64-encoded unencrypted versions of these certificates can be pasted into one file (`ssl.ca.location`).
This file would then look like the following example:
```
-----BEGIN CERTIFICATE-----
MIIQdaGDAksKadksSDKNsdka5sjy8elAMsm3d .....
... more base64-encoded content here ...
..... LKlmsf02mz2EWYnds=
-----END CERTIFICATE-----
-----BEGIN CERTIFICATE-----
MIIPmsd92nNWlasHWdwMOe92nwoa2QNinnNaZ .....
... more base64-encoded content here ...
..... ldFAf02SArubBW7wVFW2i1=
-----END CERTIFICATE-----
```
## Examples
Simple use cases using the client code can be found in the
[Axual Python Client Examples](https://gitlab.com/axual/public/axual-client-python-examples).
## Known Limitations
- We have encountered issues when using `root_ca`s consisting of more than 1 intermediate certificates.
The issue originates with the underlying SSL C library implementation and results in the following exception
when authenticating:
```
[SSL: CERTIFICATE_VERIFY_FAILED] certificate verify failed: path length constraint exceeded (_ssl.c:1123)
```
- Transaction support is not there. An [issue](https://gitlab.com/axual/public/axual-client-python/-/issues/17) is already created and transactions will be supported in future releases.
- PEM as string format is not supported. An [issue](https://gitlab.com/axual/public/axual-client-python/-/issues/19) is already created and will be added in future releases.
## Contributing
Axual is interested in building the community; we would welcome any thoughts or
[patches](https://gitlab.com/axual/public/axual-client-python/-/issues).
You can reach us [here](https://axual.com/contact/).
See [contributing](https://gitlab.com/axual/public/axual-client-python/blob/master/CONTRIBUTING.md).
### Building locally
This project uses [poetry](https://python-poetry.org/docs/) for dependency management and building.
Install the tool as per the instructions on the linked page, and build the library using:
```shell
poetry build
```
### Testing locally
Unit Tests are placed in directory [unit](tests/unit), to run all of them:
```shell
python -m unittest discover -s tests/unit -v
```
Integration tests require standalone to be running, to run standalone locally you need docker compose.
Once that is present you can start standalone
```shell
docker compose up
python -m unittest discover -s tests/integration -v
```
#### For maintainers: building a release
The version of the library being built will be the version specified in `pyproject.toml` whenever you
push to a branch.
When tagging and building a release however, please be aware that the CI pipeline will ignore the version in `pyproject.toml` and
build a release based on what is specified in the tag;
for example tagging `1.0.0-alpha4` will produce `axual_client_python-1.0.0a4-py3-none-any.whl`.
This has two consequences:
- You have to follow the normal [semver](https://semver.org/) rules when choosing a tag
- After releasing, it falls on the developer to manually update the version in `pyproject.toml` in preparation for the next version.
## License
Axual Python Client is licensed under the [Apache License, Version 2.0](https://www.apache.org/licenses/LICENSE-2.0.txt).
